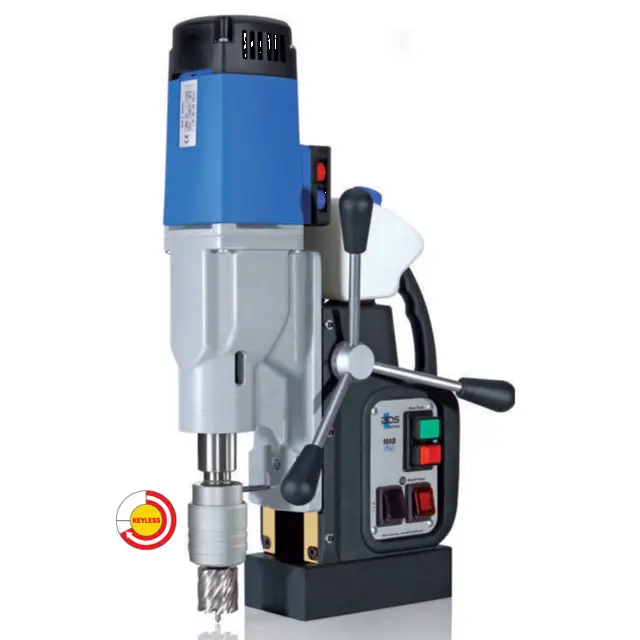

MAB 525
Weighing only 16 kg, the MAB 525 offers excellent mobility without sacrificing strength. Its torsion-resistant, single-piece gearbox housing ensures stability and accuracy. Advanced electronics, safety features, and a double coil magnet provide maximum control and dependable performance on demanding jobsites.
Weighing only 16 kg, the MAB 525 offers excellent mobility without sacrificing strength. Its torsion-resistant, single-piece gearbox housing ensures stability and accuracy. Advanced electronics, safety features, and a double coil magnet provide maximum control and dependable performance on demanding jobsites.
| Weight | 16kg |
|---|---|
| Spindle Taper | MT3 |
| Stroke (mm) | 160 |
| Motor Power | 1.600W |
| Tapping (Max) | M20 |
| Cutting Depth (Length) | 75mm |
| Drilling Diameter — with HSS Cutter | Ø50mm |
| Cutting Depth (Length) (in) | 2.95" |
| Drilling Diameter — with HSS Cutter (in) | 1.97" |
| Drilling Diameter — with Carbide (TCT) Cutter | Ø60mm |
| Drilling Diameter — with Carbide (TCT) Cutter (in) | 2.36" |

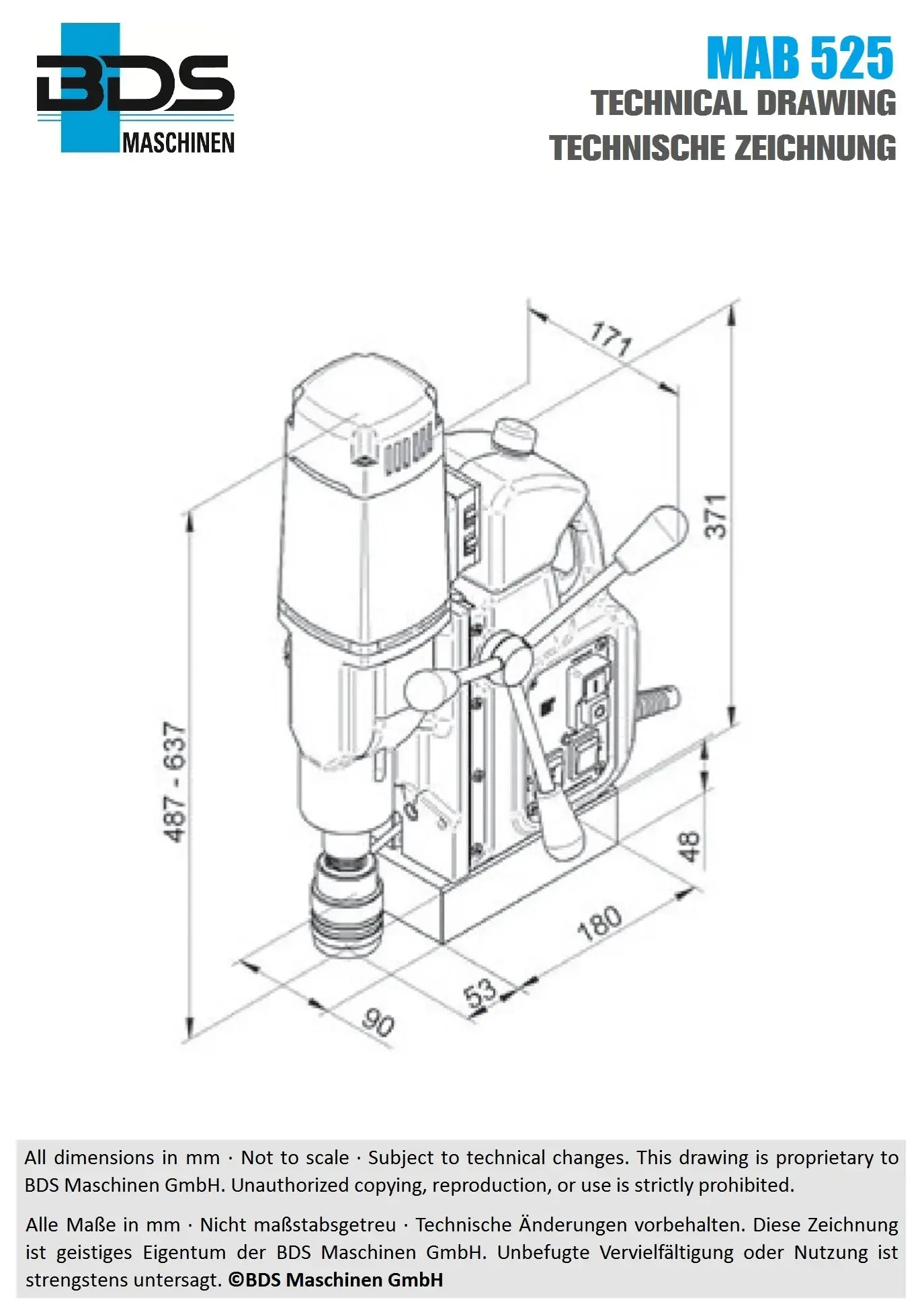

Technical Drawings
User Manuals
Datasheets
Additional sources
The manufacturer's own documents. Most are in English or German.
User Manuals
