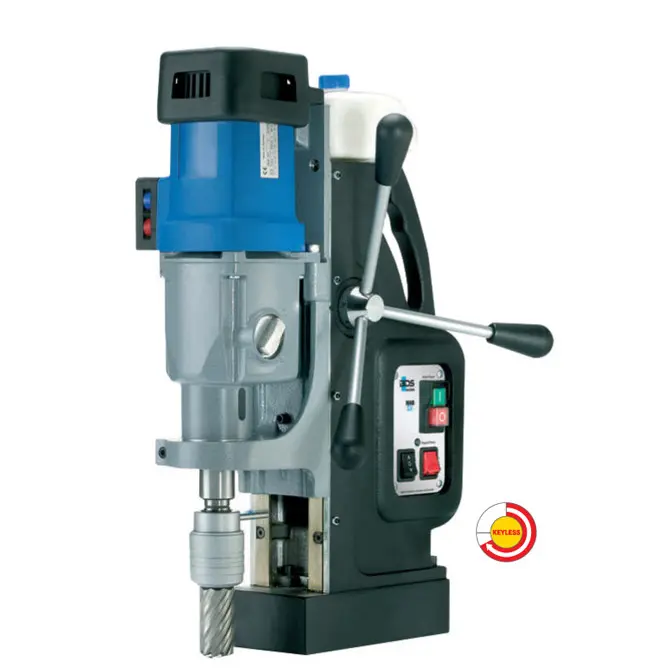

MAB 825
Four-speed gearbox, variable speed and torque control, and full-wave control electronics ensure optimal cutting performance. The double-coil magnet with adhesion indicator provides safe holding power, supported by overload protection and safety clutch. Integrated coolant tank, oil-bath gearbox lubrication, and internal…

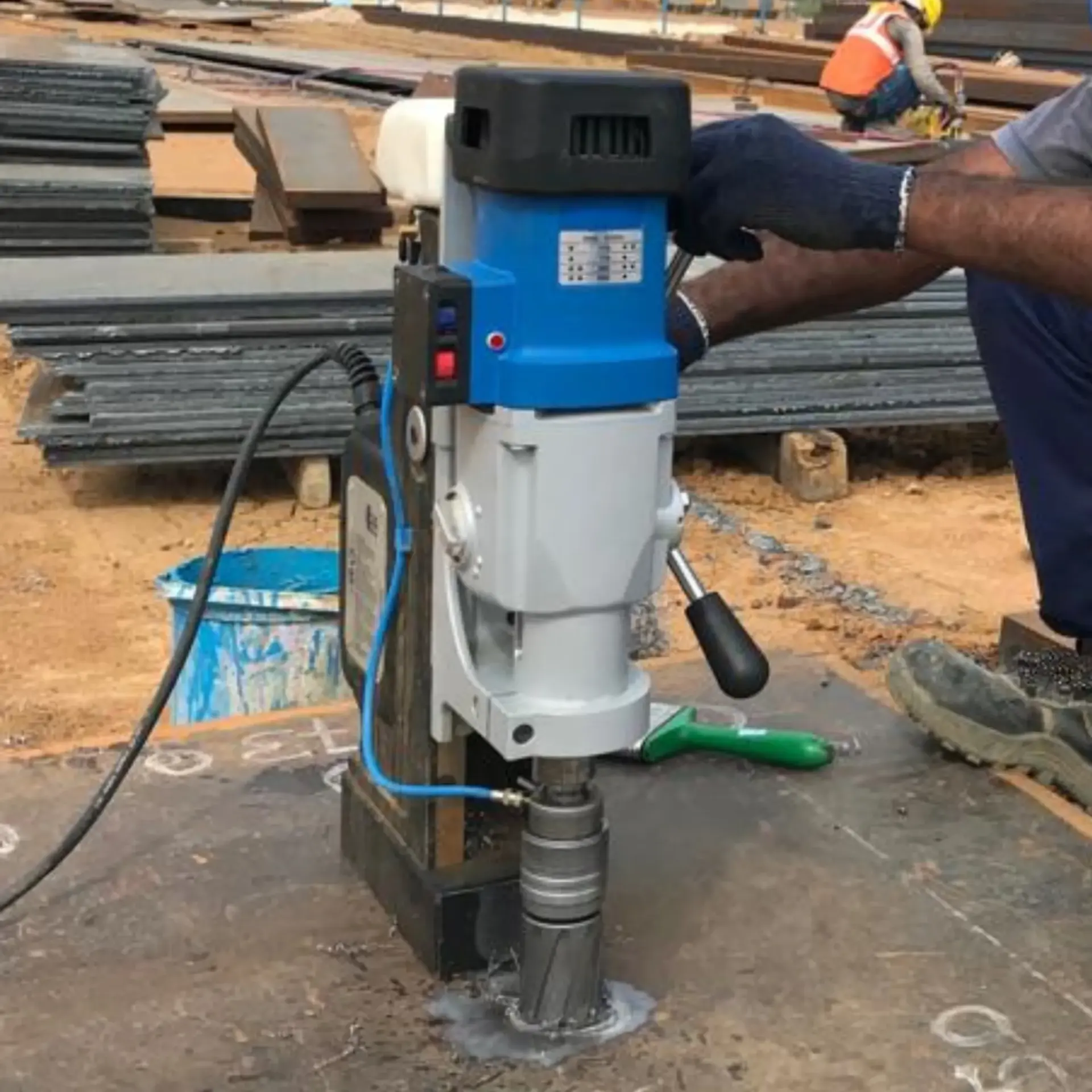

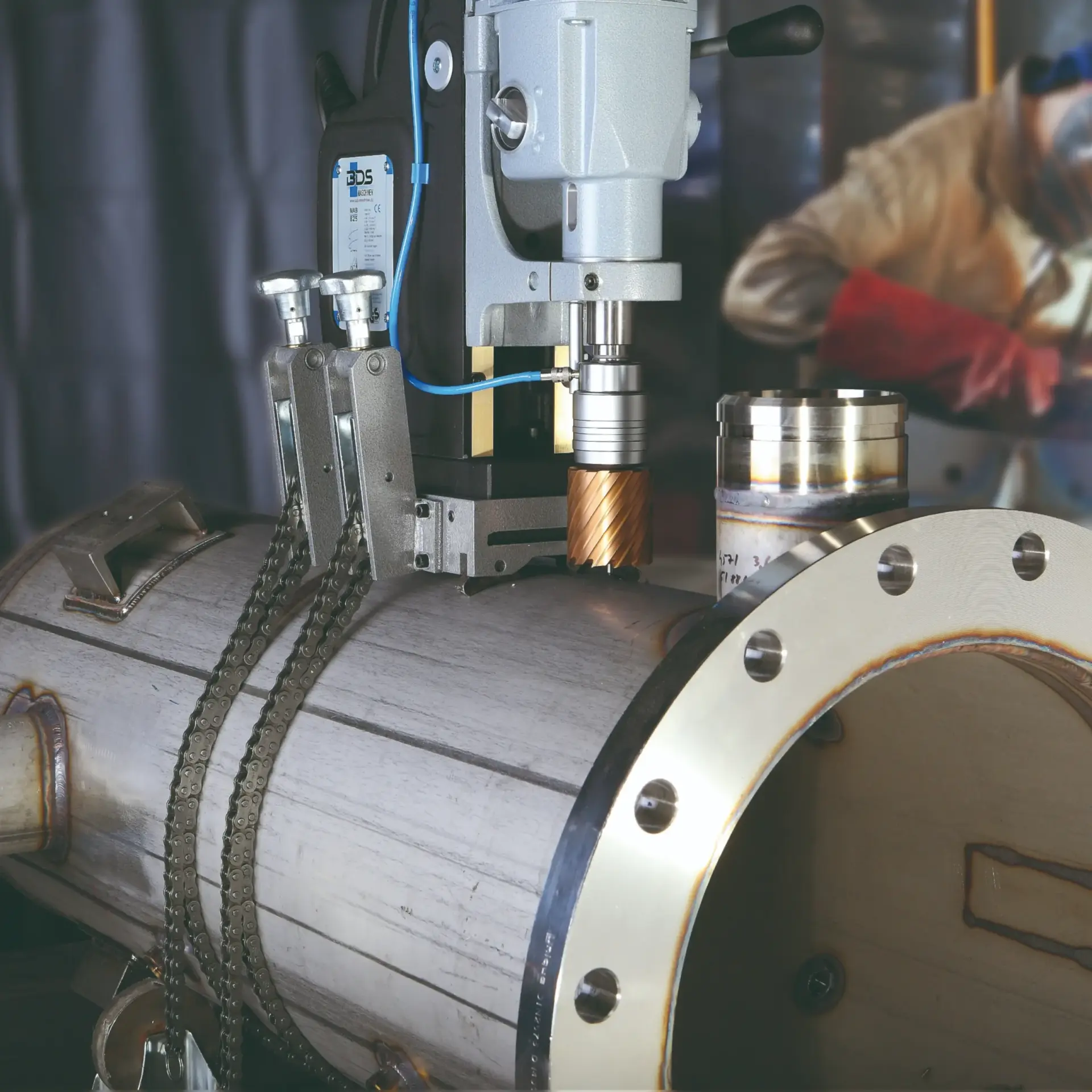

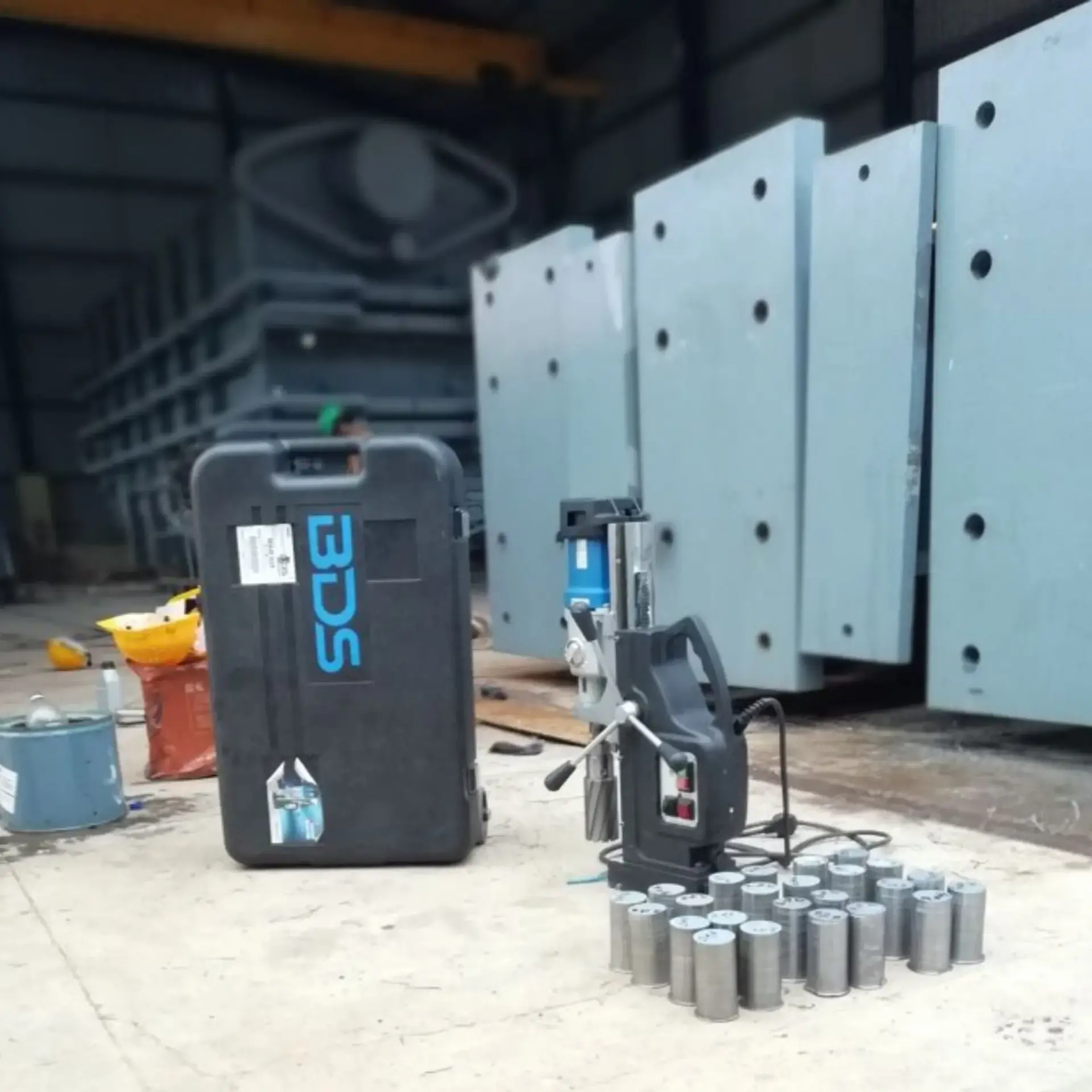

Four-speed gearbox, variable speed and torque control, and full-wave control electronics ensure optimal cutting performance. The double-coil magnet with adhesion indicator provides safe holding power, supported by overload protection and safety clutch. Integrated coolant tank, oil-bath gearbox lubrication, and internal cabling increase durability. Ideal for drilling, tapping, countersinking and reaming in heavy steel structures.
| Weight | 25kg |
|---|---|
| Spindle Taper | MT3 |
| Stroke (mm) | 255 |
| Motor Power | 1.800W |
| Tapping (Max) | M30 |
| Cutting Depth (Length) | 110mm |
| Drilling Diameter — with HSS Cutter | Ø100mm |
| Cutting Depth (Length) (in) | 4.33" |
| Drilling Diameter — with HSS Cutter (in) | 3.94" |
| Drilling Diameter — with Carbide (TCT) Cutter | Ø100mm |
| Drilling Diameter — with Carbide (TCT) Cutter (in) | 3.94" |

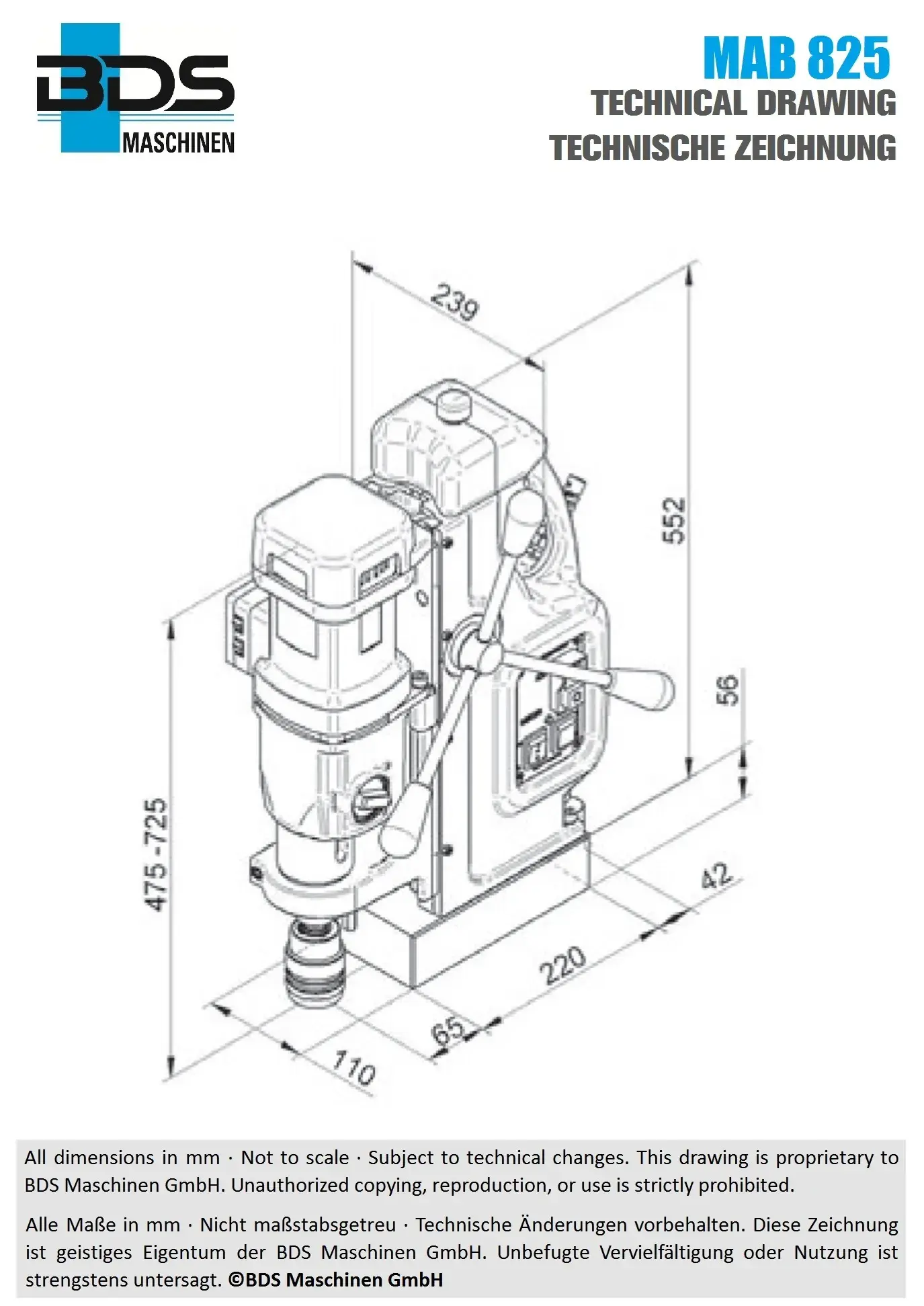

Technical Drawings
Datasheets
Additional sources
The manufacturer's own documents. Most are in English or German.
User Manuals
Similar Products
Ordered by capacity: Drilling Diameter — with Carbide (TCT) Cutter. Smallest first.
- MAB 155Ø35mm
- MAB 455Ø50mm
- MAB 465Ø50mm
- MAB 485Ø50mm
- MAB 525Ø60mm
- MAB 825You are viewing thisØ100mm
- MAB 815—
