RailMAB 915

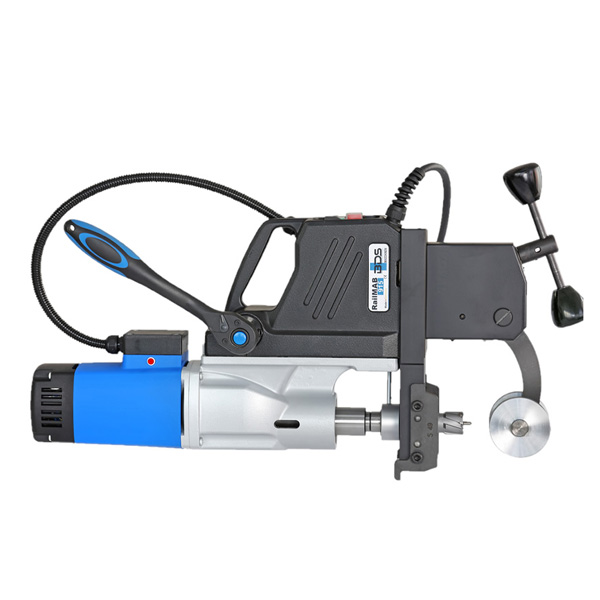

The RailMAB 915 is a professional rail drilling machine designed for railway track construction and signalling installations. Equipped with a powerful 1600 W motor, 2-speed oil bath gearbox and Morse Taper 3, it delivers high torque and precision. Ideal for core drilling and twist drilling from 1–26 mm. The quick-chang…
The RailMAB 915 is a professional rail drilling machine designed for railway track construction and signalling installations. Equipped with a powerful 1600 W motor, 2-speed oil bath gearbox and Morse Taper 3, it delivers high torque and precision. Ideal for core drilling and twist drilling from 1–26 mm. The quick-change rail clamp adapts to different rail profiles using rail shoe adapters.
Weighing only 17 kg, it is portable, generator-compatible and built for on-site and workshop use. A reliable choice for railway maintenance and track fabrication.
| Weight | 17kg |
|---|---|
| Spindle Taper | Industrial type arbor |
| Stroke (mm) | 160 |
| Motor Power | 1.600W |
| Special Feature | Electrically Powered Rail Drilling |
| Cutting Depth (Length) | 55mm |
| Drilling Diameter — with HSS Cutter | Ø50mm |
| Cutting Depth (Length) (in) | 2.17" |
| Drilling Diameter — with HSS Cutter (in) | 1.97" |
| Drilling Diameter — with Carbide (TCT) Cutter | Ø50mm |
| Drilling Diameter — with Carbide (TCT) Cutter (in) | 1.97" |
