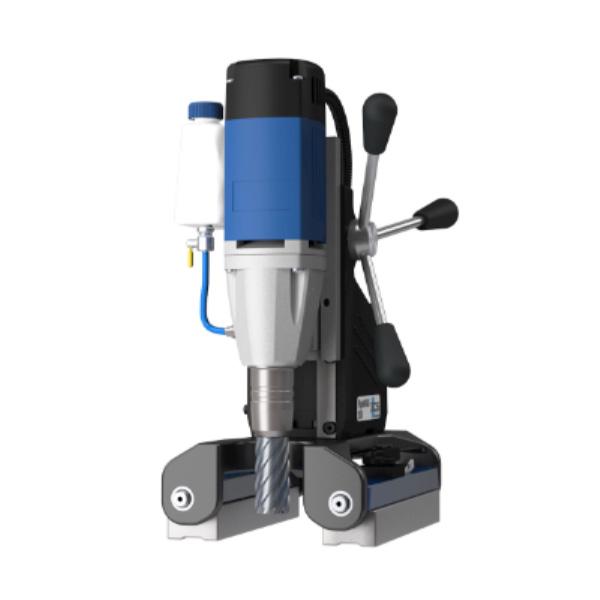

PipeMAB 200
Features
- Direct mounting
- : 19mm Weldon 3/4″
- Drilling Capacity with Standard Cutter
- : Ø35 mm
- Power Supply
- : 230V-AC
- Motor Power
- : 1.050 W
- Speed
- : 450 min -1
- Drilling Depth
- : 40 mm
- Weight
- : 16 KG
The tooling this machine runs on
The tool that does the cutting or drilling. The machine does no work without it — from the manufacturer's own compatibility list.
The PipeMAB 200 is an economical magnetic drilling machine specially designed for pipes and curved surfaces. Its patented permanent magnetic clamping system automatically adapts to pipe diameters from 85 mm (3″) and larger—inside, outside or on flat surfaces. With up to 1020 kg adhesion force, it ensures safe and accurate drilling even on 3 mm thin material. Lightweight, compact and electricity-independent magnets make it ideal for cost-efficient pipe fabrication, maintenance, plant construction and metalworking.
A smart solution for precise and budget-friendly pipe drilling applications.
| Weight | 16kg |
|---|---|
| Spindle Taper | Industrial type arbor |
| Stroke (mm) | 39 |
| Motor Power | 1.050W |
| Special Feature | Pipe/Tube Drilling |
| Tapping (Max) | M13 |
| Cutting Depth (Length) | 39mm |
| Drilling Diameter — with HSS Cutter | Ø35mm |
| Cutting Depth (Length) (in) | 1.54" |
| Drilling Diameter — with HSS Cutter (in) | 1.38" |
| Drilling Diameter — with Carbide (TCT) Cutter | Ø35mm |
| Drilling Diameter — with Carbide (TCT) Cutter (in) | 1.38" |
