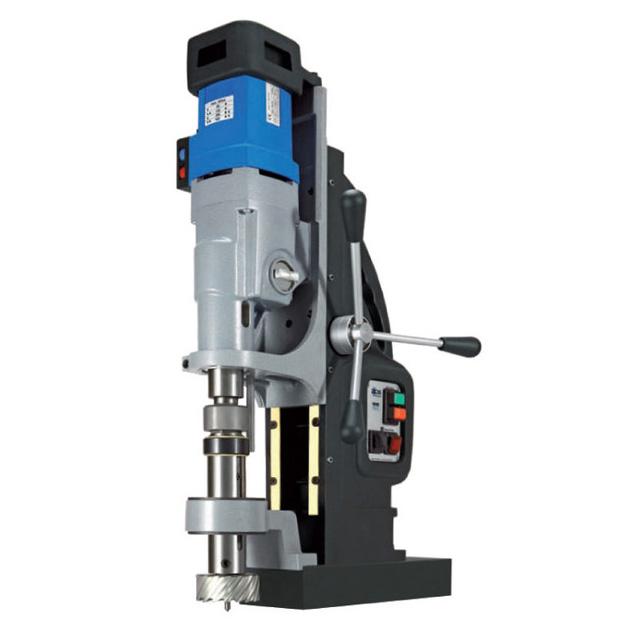

MAB 1300
- Drilling Diameter — with HSS Cutter
- Ø130mm
- Drilling Diameter — with Carbide (TCT) Cutter
- Ø130mm
- Cutting Depth (Length)
- 110mm
- Weight
- 51kg
Features
- MAB 1300V
- Motor power
- 2300 W
- Voltage
- 230V AC, 50-60 Hz
- Stroke
- 310 mm
- Magnet dimensions
- 120 x 360 x 65 mm
- Weight
- 51 kg
- Taper-spindle
- MT 4
- Gear 1 range: 30 – 80
- Gear 2 range: 50 – 120 rpm
- Gear 3 range: 130 – 350
- Gear 4 range: 210 – 550 rpm
MAB 1300
The tooling this machine runs on
The tool that does the cutting or drilling. The machine does no work without it — from the manufacturer's own compatibility list.
Specifications / Models
| Weight | 51kg |
|---|---|
| Spindle Taper | MT4 |
| Stroke (mm) | 85/310 |
| Motor Power | 2.300W |
| Tapping (Max) | M42 |
| Cutting Depth (Length) | 110mm |
| Drilling Diameter — with HSS Cutter | Ø130mm |
| Drilling Diameter — with Carbide (TCT) Cutter | Ø130mm |
Product Description

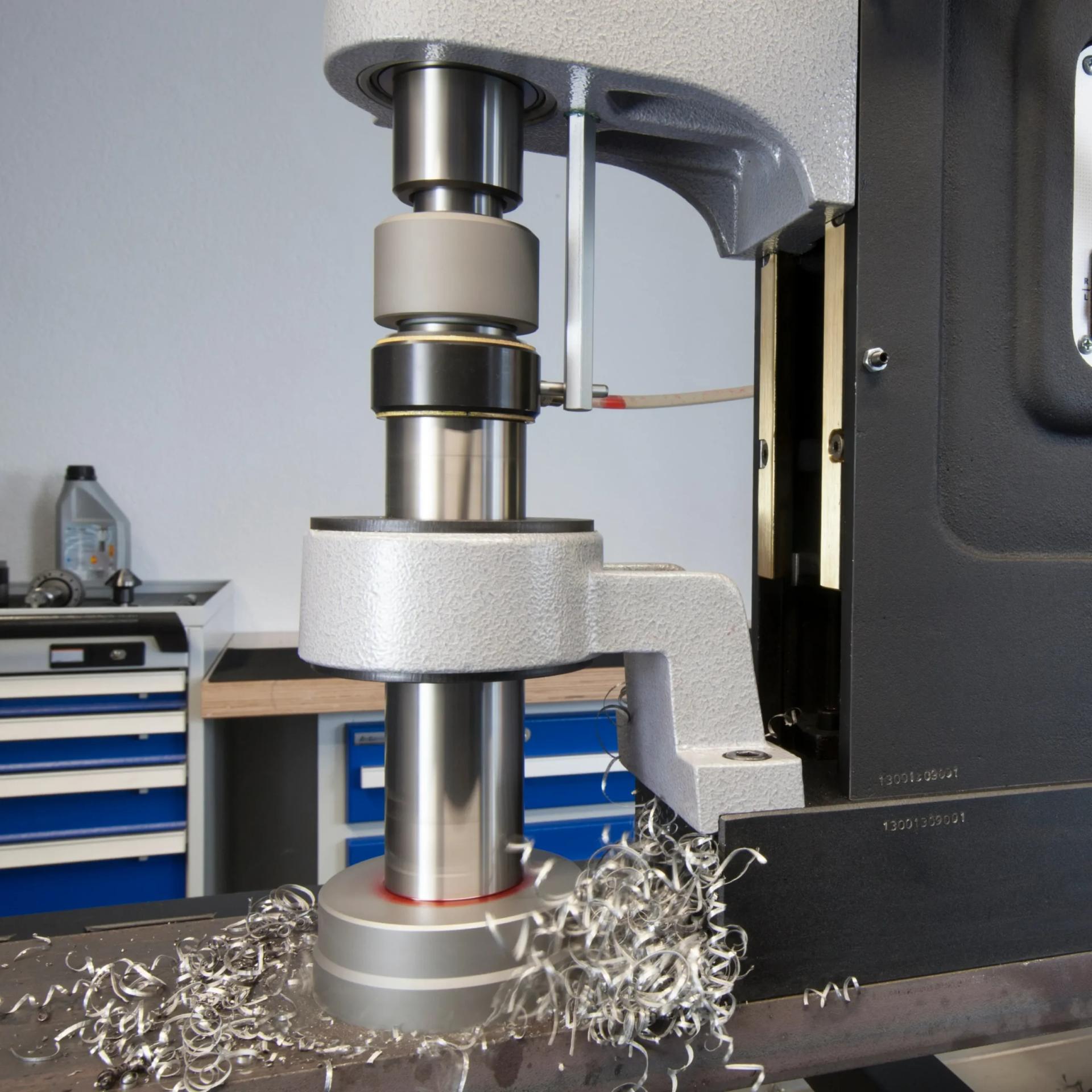

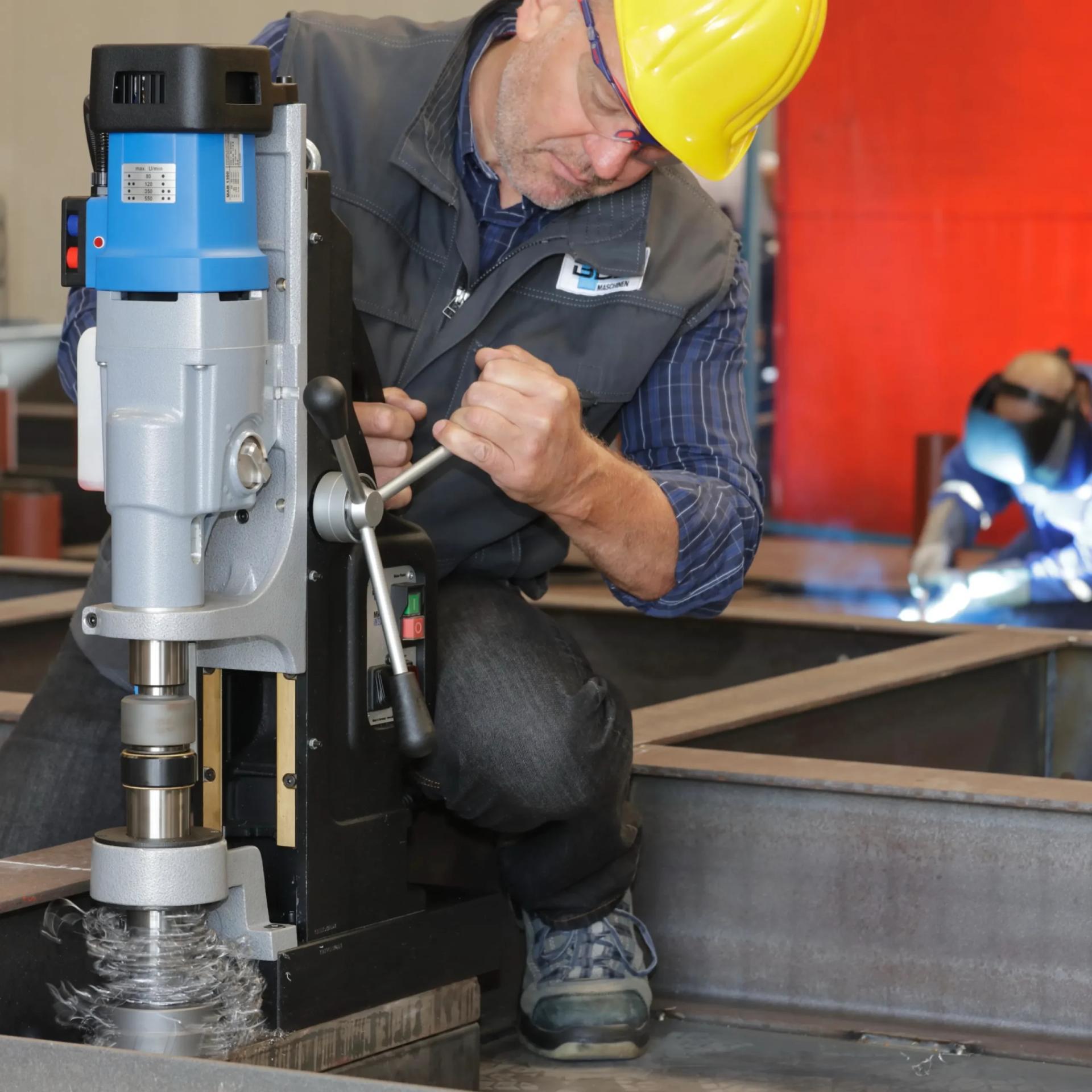

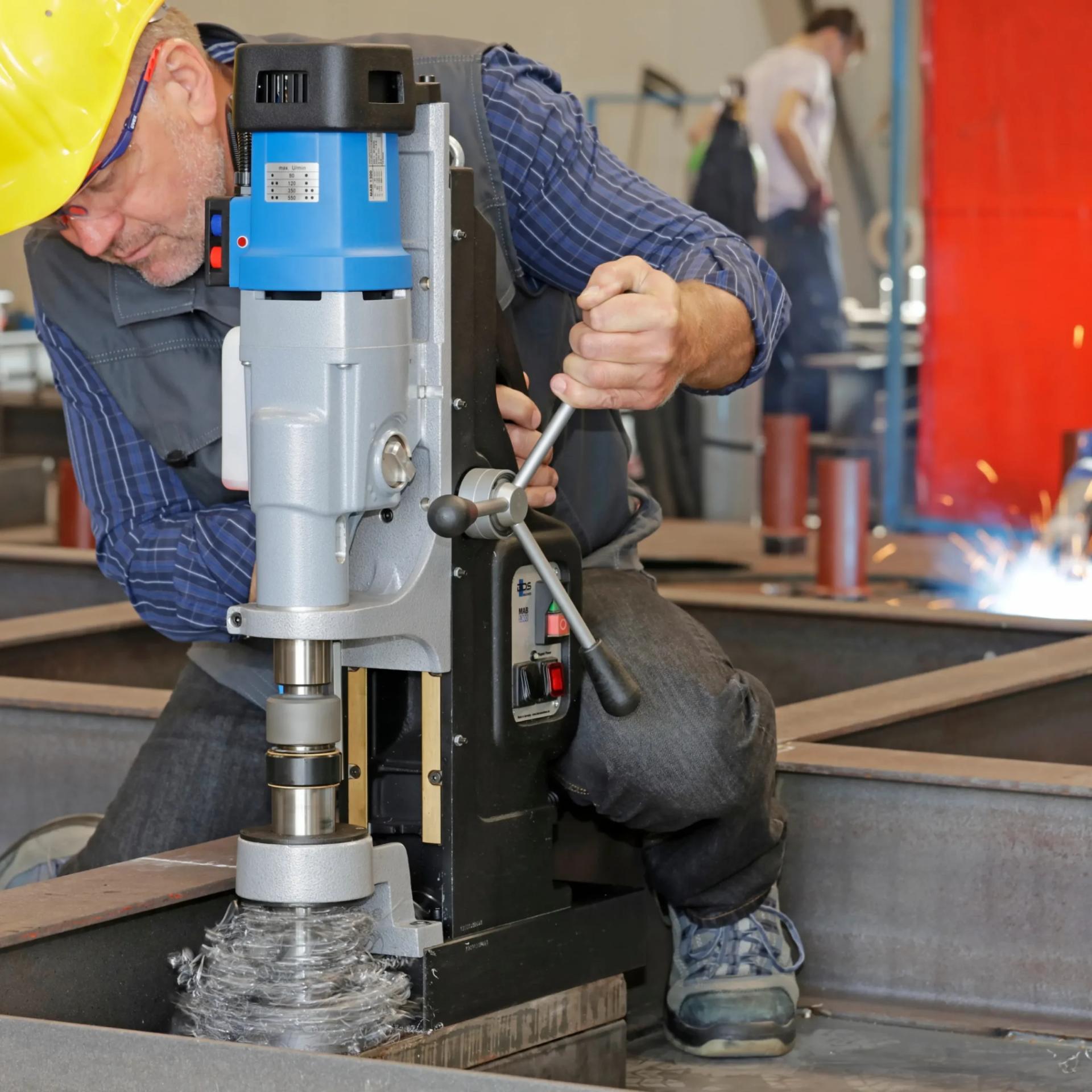

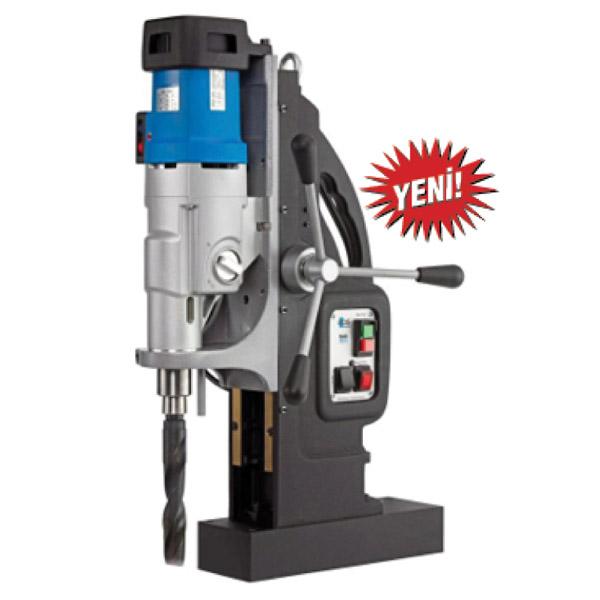

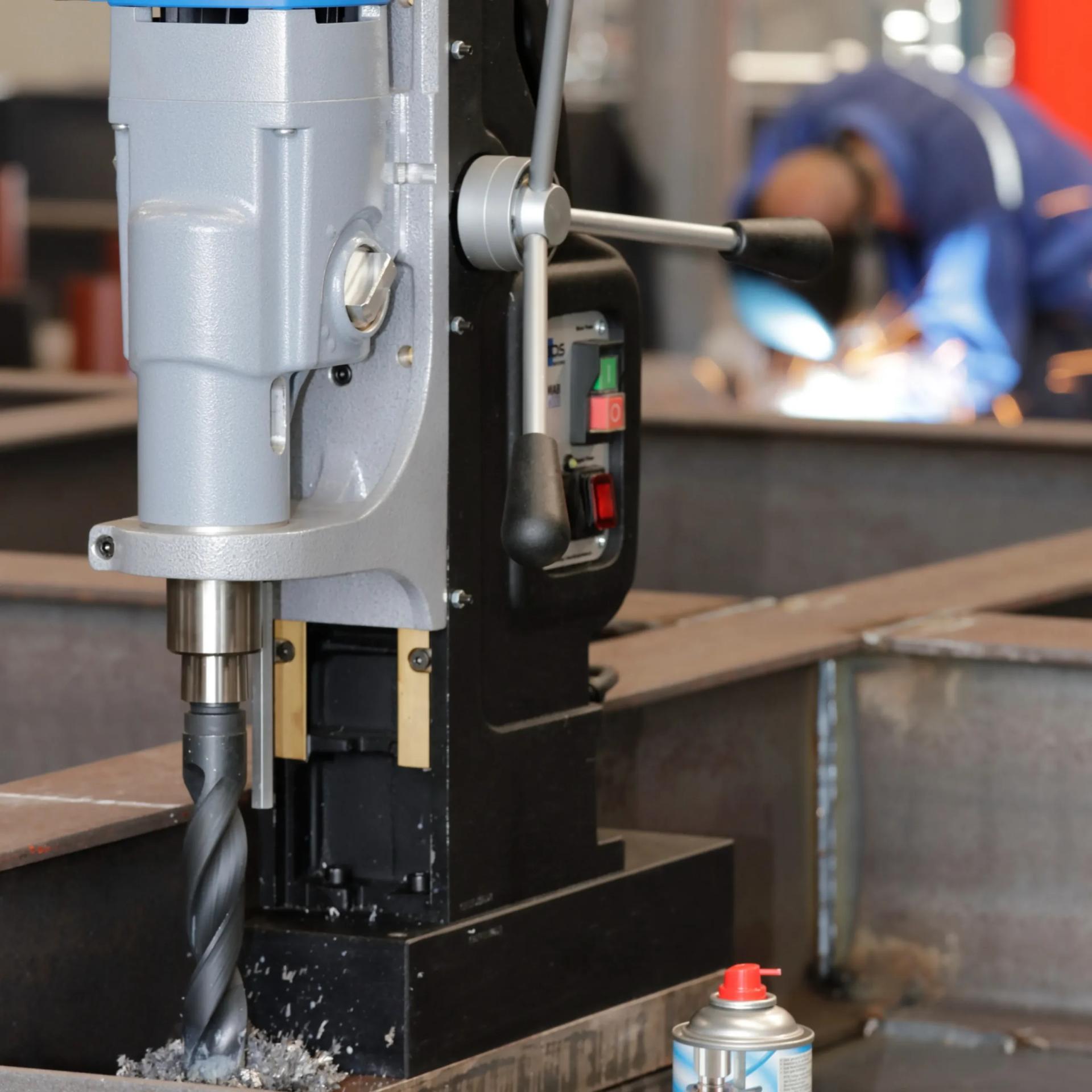

The MAB 1300 magnetic core drilling machine sets new benchmarks in heavy-duty industrial drilling. Powered by a 2,300 W motor with Servo Assist Power Feed, it delivers effortless operation, maximum torque, and outstanding efficiency. Designed for core drilling up to Ø 130 mm, tapping up to M42, and countersinking up to 80 mm, it represents BDS engineering excellence.
Description
With four mechanical speed settings and an MT4 Morse taper, the MAB 1300 ensures precise control and smooth performance. Advanced safety features, triple coil magnet, and robust construction make it the ultimate solution for the toughest industrial applications.
BDS MAB 1300 magnetic drilling machine / ProfiPLUS heavy-duty magnetic base drilling machine. Advantages of the MAB 1300: hole cutting up to Ø 130 mm, drilling depth up to 110 mm; MK 4 motor, 2300 Watt motor power; meets the ProfiPLUS class specifications; Power-Assist provides servo support while drilling.
Highlights
- Made in Germany
- Power Assist Feed Servo Motor
- Morse Taper 4

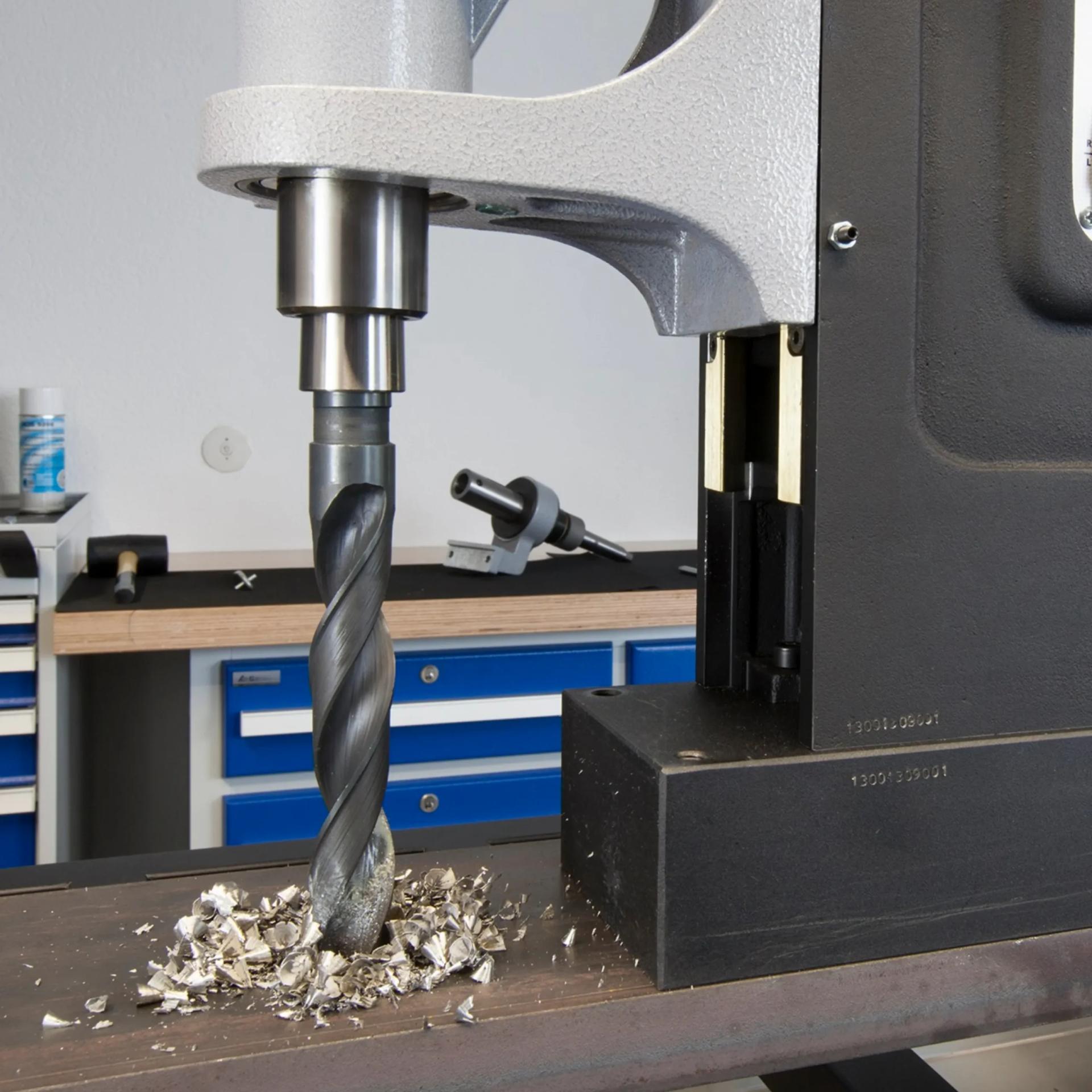

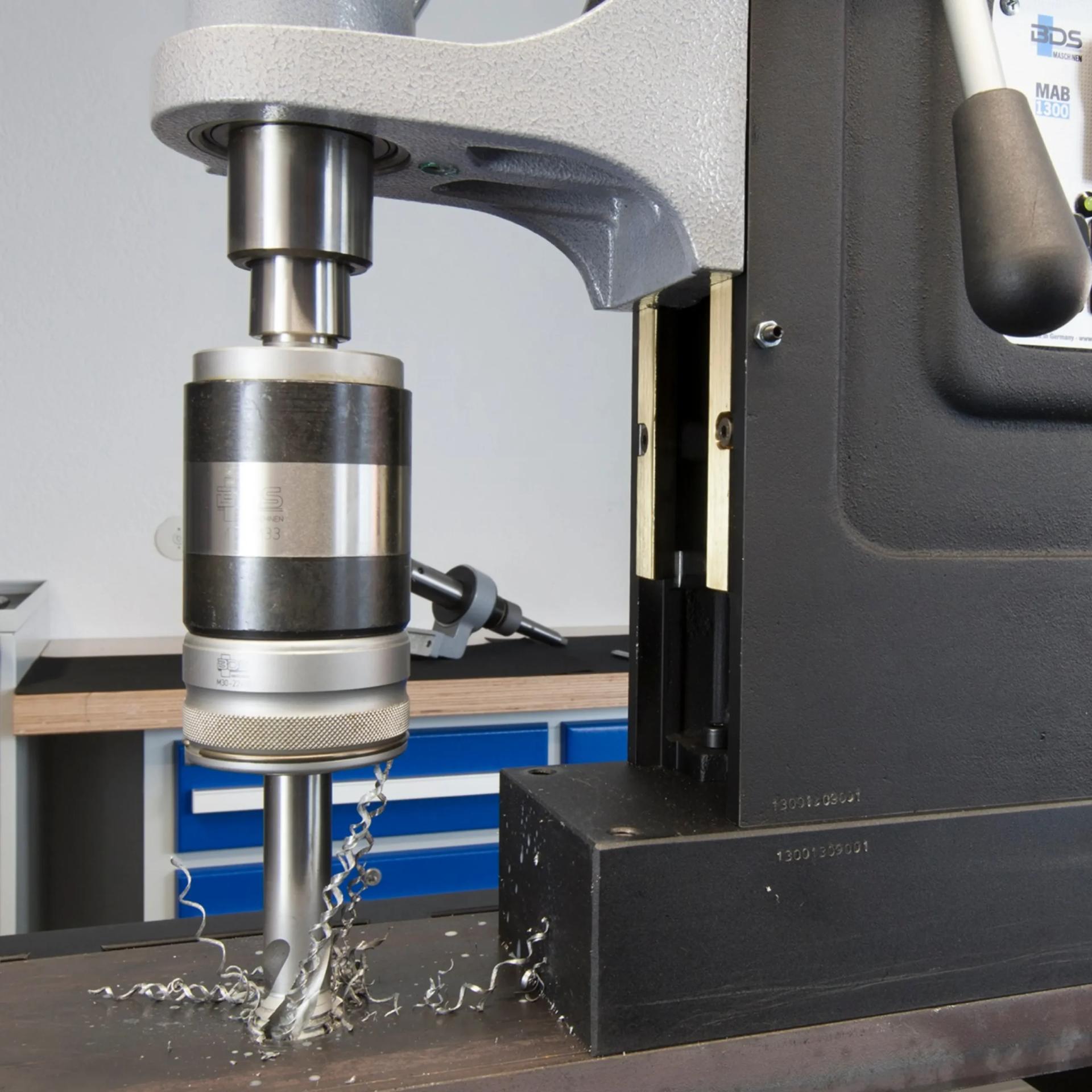

- Drilling, Tapping, Countersink & Reaming
- Reversible Motor
- Variable Speed Control
- Variable Torque Control
- Full Wave Control Electronics
- Magnet Adhesion Indicator
- Overheat Protection
- Safety Friction Clutch
- Carbon Brush Wear Indicator
- Oil Bath Gearbox
- Integrated Coolant Tank
- Permanent Internal Lubrication
- Triple Coil Magnet
- Heavy Duty Carry Case with Wheels

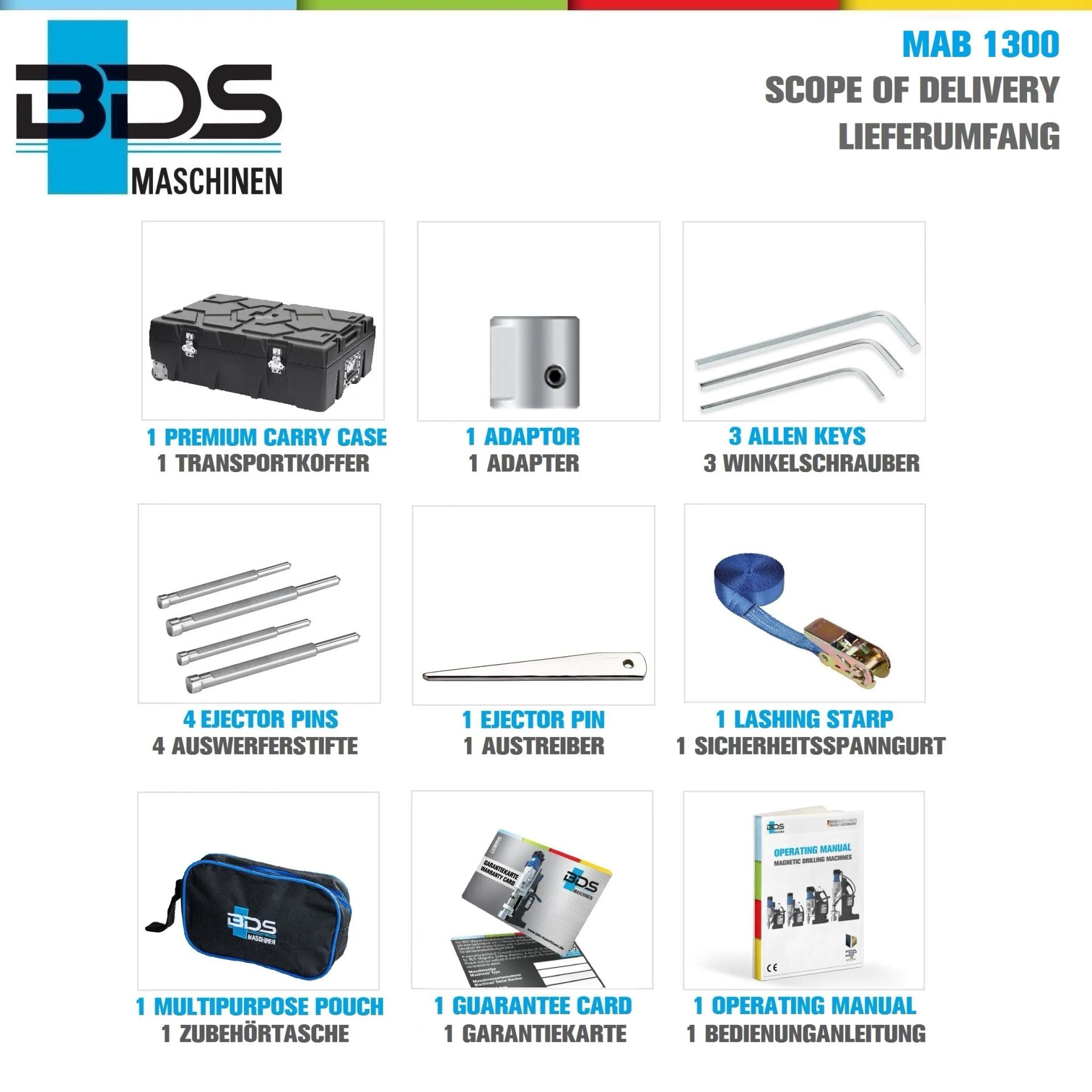

Scope of delivery
- Carry case ZHK 1300
- Ejector pin ZAK 075, 090, 100, 120
- Taper drift / adapter ZAP 200
- Ejector drift ZAS 004
- Safety lashing strap 4000161
- Allen key 911058 (6 mm), 8010251 (4 mm), 8010381 (8 mm)
- User manual
Additional Documents

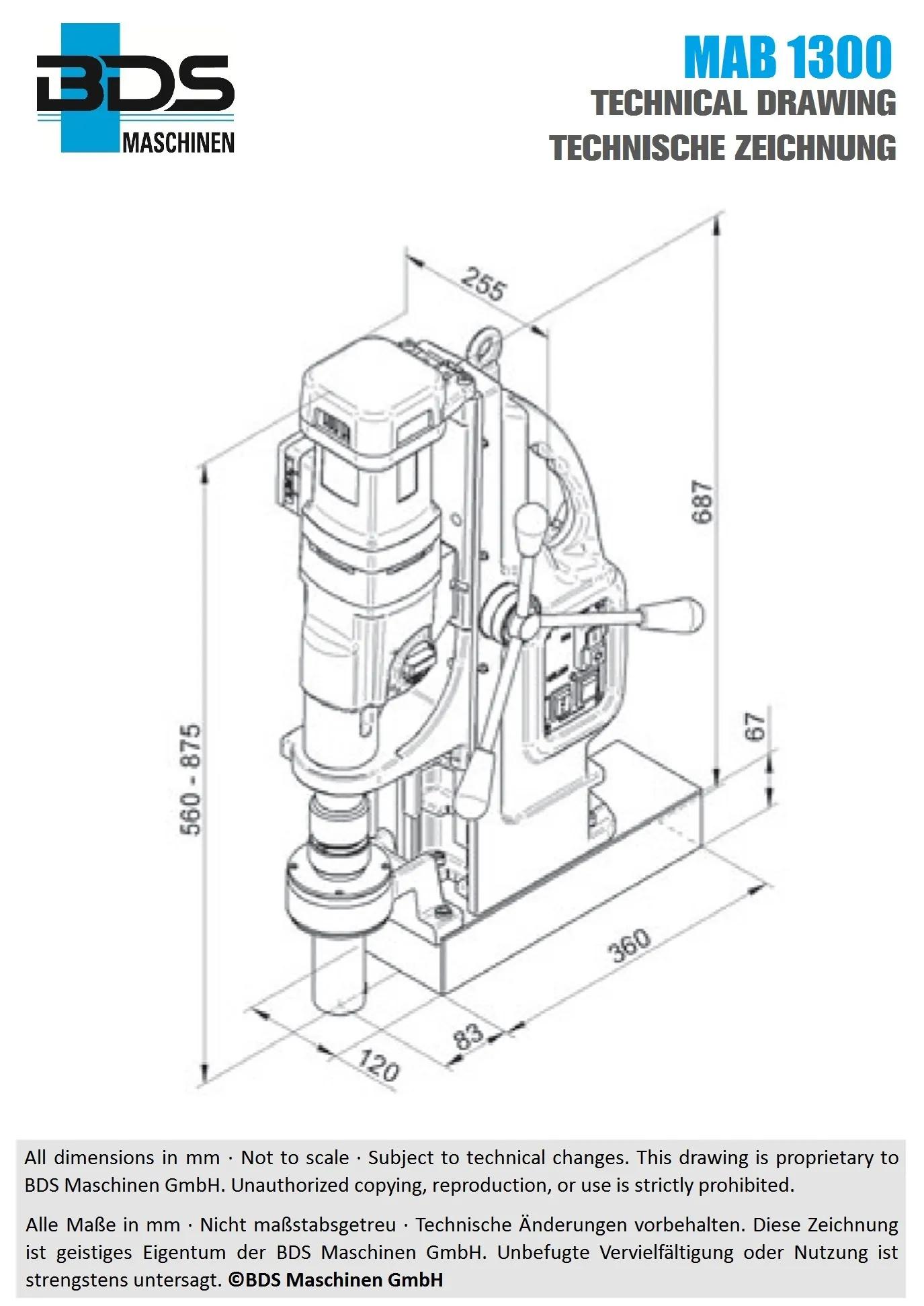

Technical Drawings
