AutoMAB 450
- Drilling Diameter — with HSS Cutter
- Ø45mm
- Drilling Diameter — with Carbide (TCT) Cutter
- Ø45mm
- Core drill cutting depth max. (mm)
- 55mm
- Voltage
- 230V / 110–125V AC
The AutoMAB 450 is a fully automatic magnetic drilling machine equipped with a robust Morse Taper 2 (MT2) spindle taper for greater tool compatibility and precision. It offers automatic feed, automatic reverse, and automatic shut-off, ensuring consistent drilling without operator fatigue. With 1,050 W motor power, it a…
AutoMAB 450

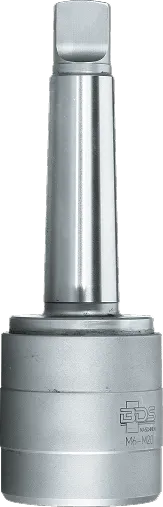

The tooling this machine runs on
The tool that does the cutting or drilling. The machine does no work without it — from the manufacturer's own compatibility list.
Specifications / Models
| Voltage | 230V / 110–125V AC |
|---|---|
| Weight | 16kg |
| Spindle Taper | MT2 |
| Motor Power | 1.050W |
| Speed Gears | 2 |
| Special Feature | Fully automatic |
| Speed Steps | 50–250, 100–450 rpm |
| Twist Drill Diameter (max) | Ø13mm |
| Drilling Diameter — with HSS Cutter | Ø45mm |
| Core drill cutting depth max. (mm) | 55mm |
| Stroke (mm) | 160 |
| Drilling Diameter — with Carbide (TCT) Cutter | Ø45mm |
Product Description

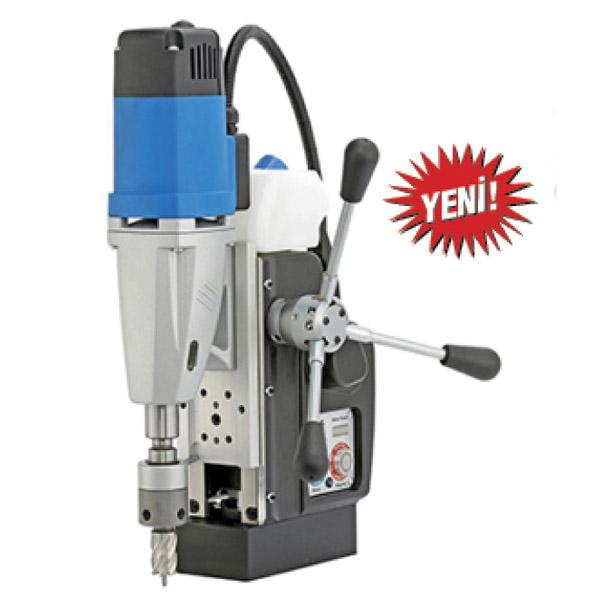

The AutoMAB 450 is a fully automatic magnetic drilling machine equipped with a robust Morse Taper 2 (MT2) spindle taper for greater tool compatibility and precision. It offers automatic feed, automatic reverse, and automatic shut-off, ensuring consistent drilling without operator fatigue. With 1,050 W motor power, it achieves core drilling up to 45 mm diameter and 55 mm depth while weighing only 16 kg. Safety features such as magnet adhesion control and overload protection make the AutoMAB 450 a dependable choice for professional, repetitive drilling tasks in steel and fabrication workshops.
Additional Documents
Technical Drawings
User Manuals
Additional sources
The manufacturer's own documents. Most are in English or German.
Videos
Similar Products
Ordered by capacity: Drilling Diameter — with HSS Cutter. Smallest first.
- MAB 155Ø35mm
- MAB 455Ø40mm
- MAB 485Ø40mm
- AutoMAB 450You are viewing thisØ45mm
- MAB 525Ø50mm
- MAB 815Ø100mm
