AirMAB 5000
- Drilling Diameter — with HSS Cutter
- Ø35mm
- Drilling Diameter — with Carbide (TCT) Cutter
- Ø35mm
- Cutting Depth (Length)
- 55mm
- Weight
- 17,5kg

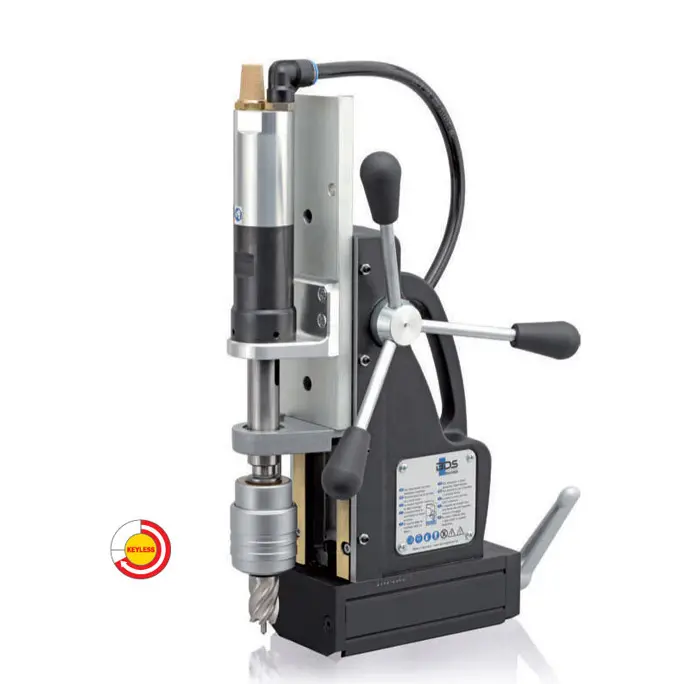

The AirMAB 5000PRO is a pneumatic magnetic drilling machine equipped with an Atlas Copco vane motor and MT2 Morse Taper for industrial precision. Its innovative PipeCLAMP permanent magnet enables secure drilling on both flat surfaces and pipes. With no electricity required and EX class Ex II 2G T4 IIC certification, it…
AirMAB 5000
The tooling this machine runs on
The tool that does the cutting or drilling. The machine does no work without it — from the manufacturer's own compatibility list.
Specifications / Models
| Weight | 17,5kg |
|---|---|
| Spindle Taper | Industrial type arbor |
| Stroke (mm) | 160 |
| Motor Power | 830W (pneumatic) |
| Special Feature | Pneumatic Feed, Cordless Drill |
| Cutting Depth (Length) | 55mm |
| Drilling Diameter — with HSS Cutter | Ø35mm |
| Drilling Diameter — with Carbide (TCT) Cutter | Ø35mm |
Product Description
The AirMAB 5000PRO is a pneumatic magnetic drilling machine equipped with an Atlas Copco vane motor and MT2 Morse Taper for industrial precision. Its innovative PipeCLAMP permanent magnet enables secure drilling on both flat surfaces and pipes. With no electricity required and EX class Ex II 2G T4 IIC certification, it is ideal for oil, gas, offshore and fire-risk environments. The machine offers 27 Nm torque, 1000 l/min air consumption, and variable speed from 290–575 rpm.
Designed for safe, powerful, and reliable drilling with compressed air.
ProfiSPEZIAL series magnetic base drilling machine powered by compressed air with a permanent magnet. Advantages: high-efficiency vane motor. The motor is approved for use in EX class: T4 IIC D110°C. Contains a very efficient permanent magnet.
Highlights
- Made in Germany
- Pneumatic Drilling With Compressed Air
- Atlas Copco High-Performance Vane Motor
- EX Class Ex II 2G T4 IIC Certified
- Air Consumption 1000 L/Min
- 27 Nm Rated Torque
- Morse Taper 2
- Patented Permanent Magnet
- Strong Magnetic Grip On Pipes
- Works On Curved And Flat Surfaces
- Suitable For Pipes From 85 mm Diameter
- Holds On Material As Thin As 3 mm
- Elongated Tool Holder For Full Stroke Use
- Keyless Tool Holder
- Permanent Internal Lubrication
- Heavy Duty Carry Case
Scope of delivery
- Carry case ZHK 800
- Ejector pin ZHK 075, 100
- Arbor ZSS 200
- Ejector drift ZAS 002
- Safety lashing strap 4000161
- User manual
