REEDREED-04170Option: TC8QP

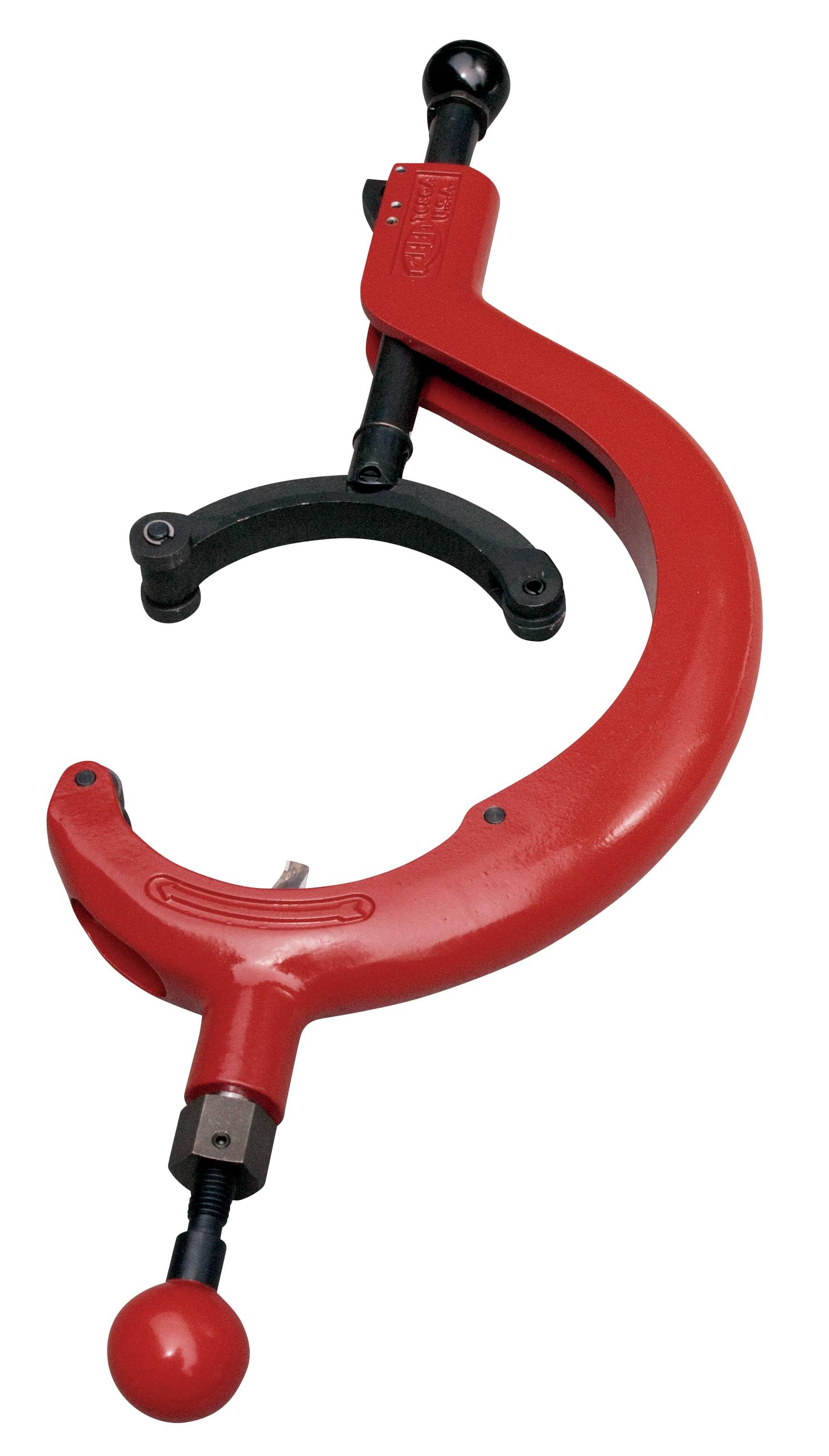

Quick Release™ TC8QP Tubing Cutter, 10 in Max Pipe/Tube Dia, 6-1/4 in Mini Pipe/Tube Dia
Quick Release™ TC8QP Tubing Cutter, 10 in Max Pipe/Tube Dia, 6-1/4 in Mini Pipe/Tube Dia
REED
OptionTC8QPREED-0417023 options
TC1QPREED-04110TC1QPVCREED-04114TC1.6QPREED-04116TC1.6QPVCREED-04118TC2QPREED-04120TC6Q80PREED-04123TC2QPVCREED-04124TC6Q680PVCREED-04125TC3QPREED-04130TC3QPVCREED-04134TC3Q6QPREED-04138TC4QPREED-04140TC4QPVCREED-04144TC4Q6QPREED-04148TC5QPREED-04150TC5Q6QPREED-04152TC5QPPRREED-04153TC5QPVCREED-04154TC6QPREED-04160TC6QPVCREED-04164TC6Q6QPREED-04168TC8QPREED-04170TC8QPLREED-04171
Part of the Quick Release Pipe Cutter, Plastic range.
Specifications
| Cutter Wheel | Parting Blade installed;<br>80P wheel in box, not installed |
|---|---|
| Overall Length | 26in |
| Overall Depth | 1.9in |
| Application Area | Parting Blade: ABS, HDPE/PE, PP, PVC Sch. 40; 80P Wheel: ABS, HDPE, PE .75 Thick (19 mm) |
| Overall Width | 10.6in |
| OD Capacity | 6 1/4 - 10actual O.D. in |
| Min. Pipe/Tube Diameter | 6-1/4in |
| Max. Pipe/Tube Diameter | 10in |
| OD Capacity 2 | 159 - 254actual O.D. mm |
