What is Hot Tapping (Under-Pressure Drilling)?
This process, known as “Hot Tapping” in the industry, is the addition of a new connection (service line) to an existing and active pipeline while the fluid inside continues to flow under pressure. It is critically important to prevent leakage and maintain the integrity of the line during this process. REED DM The series makes this complex operation a standard that every operator on site can perform with confidence, thanks to its sealing equipment and professional drill bits.

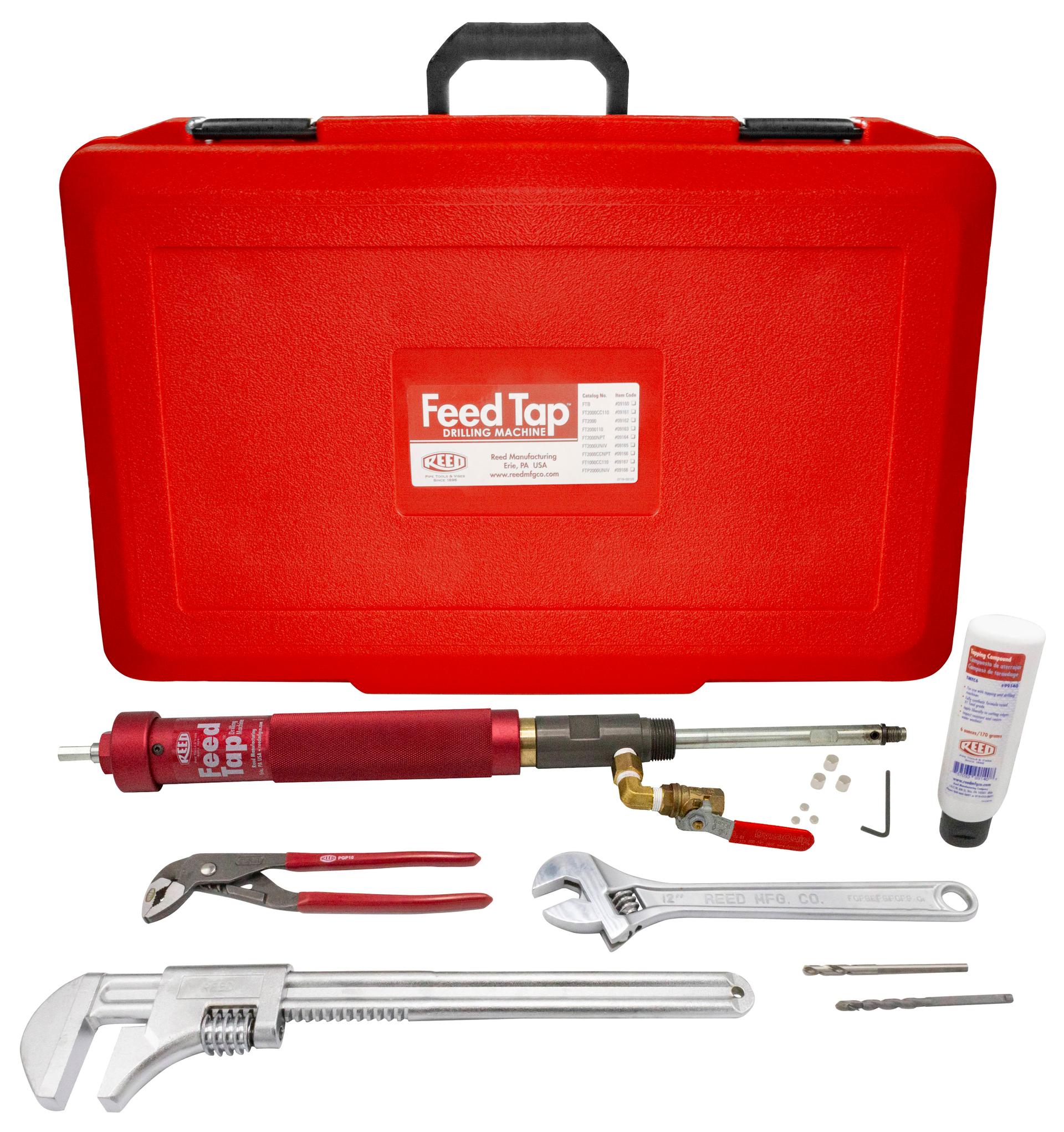

Technical Superiority of REED DM and FEED TAP Systems
REED Drilling machines stand out from their competitors with their durability and precise control mechanism. Whether the pipe material is PVC, cast iron, or steel, the process is completed without pressure loss with the correct adapter and bit selection.
REED DM Series Advantages
- Maximum Safety Under Pressure: Drilling and tapping capability without leakage in pressurized lines.
- Broad Material Compatibility Custom design for PVC, PE, cast iron, ductile iron, and steel pipes.
- Modular Structure Branch connection capability from 3/4 inch to 2 inch diameter with different adapter sets.
- Compact Design Body structure that allows comfortable work even in narrow trenches and confined spaces.
Operational Efficiency and Speed
Emptying a line, closing valves, and then refilling and purging the line after the operation is complete can take hours, sometimes days. REED DM Drilling machines, on the other hand, eliminate all these preparation stages. Habib Makina‘These systems, used in the field with technical support from, allow you to complete a new subscriber connection or valve installation in just minutes.
Technological Integration: Battery Powered Units
For large-diameter or thick-walled pipes where manual operation is difficult, REED POWER DRIVE units come into play. Battery-powered or electric drive systems increase the speed and precision of the drilling process while reducing the operator's physical load. This integration allows teams to make significantly more connections in a day, especially in dense infrastructure projects.
Frequently Asked Questions (FAQ)
Is there a water spray during drilling under pressure?
No, REED DM The machines use special sealing gaskets and valve adapters. When the drill bit is retracted, the valve is closed, and the process is completed without leakage.
What maximum pressure values can it be used at?
Depending on the model used, it can safely operate at pressures well above standard mains pressure (up to approximately 200-300 PSI).
3. Is a separate machine needed for plastic pipes?
No, REED DM The machines are modular. You only need to change the drill bits to match the pipe type (a special bit for PVC, a different one for iron).
Do you provide training and technical support?
Yes, Habib Makina The technical team provides comprehensive training on device usage and field applications.
